Kubernetes Practice — Automating Blue/Green Deployment with Argo Rollouts

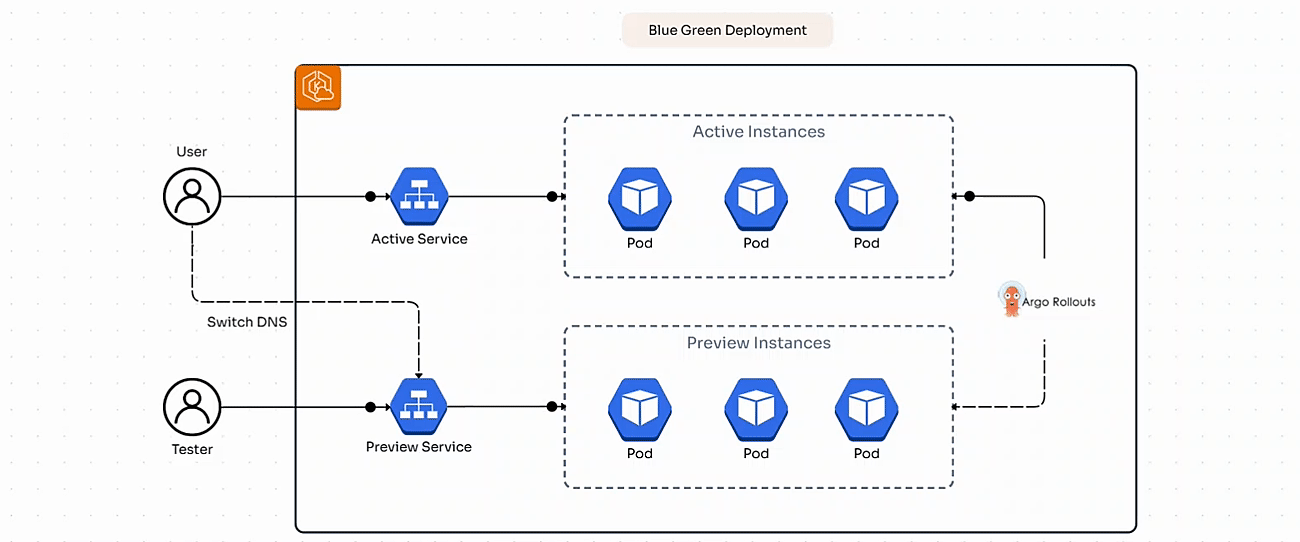

In this article, we will learn how to automate Blue/Green Deployment with Argo Rollouts.
Argo Rollouts
Argo Rollouts is a Kubernetes Controller and set of Custom Resource Definitions (CRDs) that provide advanced features for application deployment on Kubernetes compared to the native Kubernetes Deployment Object.
Argo Rollouts provide deployment capabilities such as blue-green, canary, canary analysis, experimentation, and progressive delivery features to Kubernetes.
Because Argo Rollouts are a set of CRDs, we need to install them into the Kubernetes Cluster. Run the following commands to install Argo Rollouts.
Check if we installed it successfully.
kubectl get pod -n argo-rolloutsNAME READY STATUS RESTARTS AGE
argo-rollouts-76fcfc8d7f-k6mth 1/1 Running 0 58s
Argo Rollouts Deployment Strategy
To use Argo Rollouts, we declare a resource with the apiVersion attribute as argoproj.io/v1alpha1
and the kind as Rollout
, like below:
The configuration of Argo Rollouts has a strategy property for us to choose the deployment strategy we want, with two values of blueGreen
and canary
.
See detail here Rollout Specification. Don’t try to understand all properties for now.
In this article, we will learn about blue/green.
Practice
I use Minikube to run Kubernetes Cluster for the demo. Create a file named bluegreen-rollout.yaml
.
All properties of Rollout are the same as a native Deployment Object, only the strategy attribute is different. In the file above, we declare 3 properties:
autoPromotionEnabled: false
— Indicates if the rollout should automatically promote the new ReplicaSet to the active service or enter a paused state. If not specified, the default value is true.activeService: bluegreen-demo
— Reference to service that the rollout modifies as the active service.previewService: bluegreen-demo-preview
— Name of the service that the rollout modifies as the preview service.
Next, we create a file named service.yaml
.
The two Services properties are the same except for the name property. Next, we create a Rollout Object.
kubectl apply -f bluegreen-rollout.yaml
rollout.argoproj.io/bluegreen-demo createdkubectl get rollout
NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE
bluegreen-demo 2 2 2 2 30s
When we create a Rollout, the Argo Rollouts implicit create a ReplicaSet for a current revision. Let’s check:
kubectl get rs
NAME DESIRED CURRENT READY AGE
bluegreen-demo-fbc7b7f55 2 2 2 4m37skubectl get pod
NAME READY STATUS RESTARTS AGE
bluegreen-demo-fbc7b7f55-g6fst 1/1 Running 0 37s
bluegreen-demo-fbc7b7f55-vvdth 1/1 Running 0 37s
Ensure that Replica Set and Pod are running, next, we create a Service.
kubectl apply -f service.yamlservice/bluegreen-demo created
service/bluegreen-demo-preview created
At this time, both the bluegreen-demo
and bluegreen-demo-preview
are pointing to the same ReplicaSet as bluegreen-demo-fbc7b7f55
.
Let’s test, we run the following commands to get the URL of both services.
minikube service bluegreen-demo --url
172.26.123.245:30000minikube service bluegreen-demo-preview --url
172.26.123.245:30001
Open the browser, we will see the UI below.
Now, we change the image
property of Rollout Object.
Updating Rollout Object.
kubectl apply -f bluegreen-rollout.yamlrollout.argoproj.io/bluegreen-demo configured
At this point, Argo Rollouts will create a new ReplicaSet for the new configuration.
kubectl get rsbluegreen-demo-7d6459646d 2 2 2 2m11s
bluegreen-demo-fbc7b7f55 2 2 2 41m
Then the bluegreen-demo-preview
service is modified to point to the new ReplicaSet. Accessing the preview service address will see a different UI.
And the bluegreen-demo
service does not change.
After we check the new ReplicaSet and see that all is well, next, we promote the new revision of ReplicaSet by updating the bluegreen-demo
service to point to it, we run the following command (don’t follow, we will use another way).
kubectl argo rollouts promote bluegreen-demorollout 'bluegreen-demo' promoted
Now, Argo Rollouts update the bluegreen-demo
service to point to the new ReplicaSet, after waiting (default 30 seconds), the old ReplicaSet is scaled down.
UI Dashboard
In my opinion, DevOps Engineers should not do the work “promotes” the new ReplicaSet, our task is just to build the CI/CD so that the Rollout can be updated when a new version of the application is available. Leave it to QC Engineer.
But QC can’t run CLI so we need to have a dashboard for QC to do this. Fortunately, Argo Rollout provides us with a dashboard, which we can enable using kubectl or using quay.io/argoproj/kubectl-argo-rollouts
container image.
kubectl argo rollouts dashboardArgo Rollouts Dashboard is now available at localhost 3100
Go to localhost:3100
we will see the dashboard of Argo Rollouts.
Choose to bluegreen-demo
.
You will see the Promote button, the person who clicks this button will be the QC, if anything is wrong, the QC will be responsible =)))), let’s click on the promote button.
Click Sure.
Now you access both the bluegreen-demo
and the bluegreen-demo-preview
service we will see the same UI.
Ingress
Ingress configuration for public access if you need.
Done 😁.
Conclusion
So we have learned how to automate Blue/Green Deployment with Argo Rollouts, as you can see, it’s also simple 😁. If you have any questions or need further clarification, you can ask in the comment section below.
